Membuat Aplikasi android Mengenal Minuman Tradisional Indonesia

Membuat aplikasi di Moblie dengan login, untuk Sayarat untuk memenuhi ujian akhir semester mata kuliah Moblie Programing,Berikut ini langkah untuk membuat aplikasi menu minuman tradisional.

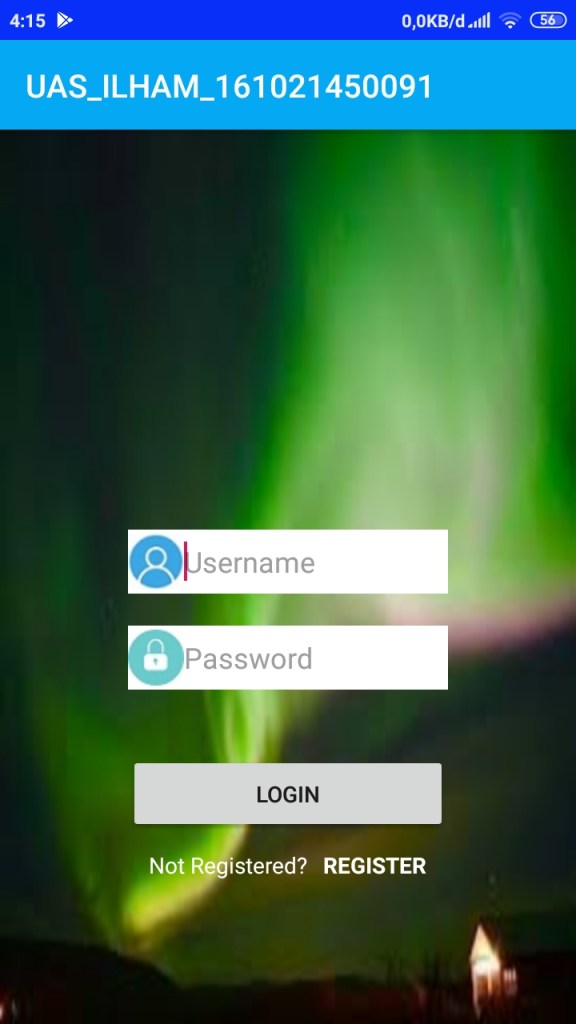

Pertama-tama kita membuat login terlebih dahulu, berikut di bawah ini.

LoginActivity.java

package com.ilham;

import android.content.Intent;
import android.os.Bundle;
import android.view.View;
import android.widget.Button;
import android.widget.EditText;
import android.widget.TextView;
import android.widget.Toast;

import androidx.appcompat.app.AppCompatActivity;

public class LoginActivity extends AppCompatActivity {
    EditText mTextUsername;
    EditText mTextPassword;
    Button mButtonLogin;
    TextView mTextViewREGISTER;
    DatabaseHelper db;


    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_login);

        db = new DatabaseHelper(this);
        mTextUsername = (EditText)findViewById(R.id.edittext_username);
        mTextPassword = (EditText)findViewById(R.id.edittext_password);
        mButtonLogin = (Button) findViewById(R.id.button_login);
        mTextViewREGISTER = (TextView) findViewById(R.id.textview_register);
        mTextViewREGISTER.setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View view) {
                Intent registerIntent = new Intent(LoginActivity.this,RegisterActivity.class);
                startActivity(registerIntent);
            }
        });

        mButtonLogin.setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View view) {
                String user = mTextUsername.getText().toString().trim();
                String pwd = mTextPassword.getText().toString().trim();
                Boolean res = db.checkUser(user, pwd);
                if (res == true)
                {
                    Intent HomePage = new Intent(LoginActivity.this,MainActivity.class);
                    startActivity(HomePage);
                }
                else
                    Toast.makeText(LoginActivity.this, "Login Error", Toast.LENGTH_SHORT).show();
            }
        });
        }
    }

activity_login.xml

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:layout_gravity="center_horizontal"
    android:background="@drawable/aura"
    android:orientation="vertical"
    tools:context="com.ilham.LoginActivity">

    <EditText
        android:id="@+id/edittext_username"
        android:layout_width="200dp"
        android:layout_height="40dp"
        android:layout_gravity="center"
        android:layout_marginTop="250dp"
        android:background="#ffffffff"
        android:drawableLeft="@drawable/username"
        android:hint="@string/username" />

    <EditText
        android:id="@+id/edittext_password"
        android:layout_width="200dp"
        android:layout_height="40dp"
        android:layout_gravity="center"
        android:layout_marginTop="20dp"
        android:background="#ffffffff"
        android:drawableLeft="@drawable/password"
        android:hint="@string/password" />

    <Button
        android:id="@+id/button_login"
        android:layout_width="200dp"
        android:layout_height="50dp"
        android:layout_gravity="center"
        android:layout_marginTop="40dp"
        android:text="@string/login" />

    <LinearLayout
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_gravity="center"
        android:layout_marginTop="10dp"
        android:orientation="horizontal">

        <TextView
            android:layout_width="wrap_content"
            android:layout_height="35dp"
            android:text="@string/not_registered"
            android:textColor="#ffffffff" />

        <TextView
            android:id="@+id/textview_register"
            android:layout_width="wrap_content"
            android:layout_height="35dp"
            android:paddingLeft="10dp"
            android:text="@string/register"
            android:textColor="#ffffffff"
            android:textStyle="bold" />

    </LinearLayout>

</LinearLayout>

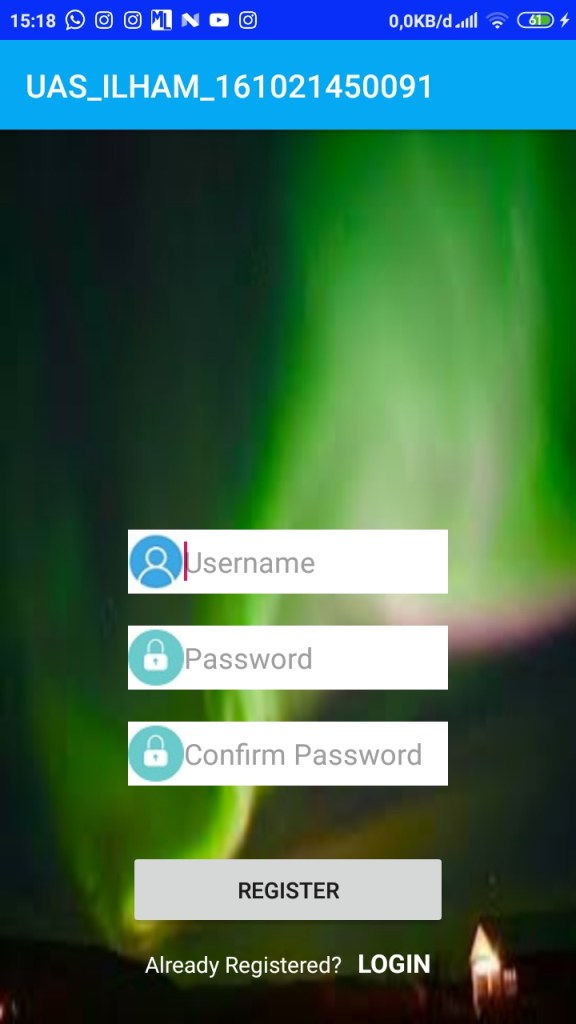

Lalau abis membuat login kita langsung memuat activity berkut nya adalah memuat register, berikut coding di bawah ini.

RegisterActivity.java

package com.ilham;

import android.content.Intent;
import android.os.Bundle;
import android.view.View;
import android.widget.Button;
import android.widget.EditText;
import android.widget.TextView;
import android.widget.Toast;

import androidx.appcompat.app.AppCompatActivity;

public class RegisterActivity extends AppCompatActivity {
    DatabaseHelper db;
    EditText mTextUsername;
    EditText mTextPassword;
    EditText mTextCnfPassword;
    Button mButtonRegister;
    TextView mTextViewLogin;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_register);

        db = new DatabaseHelper(this);
        mTextUsername = (EditText)findViewById(R.id.edittext_username);
        mTextPassword = (EditText)findViewById(R.id.edittext_password);
        mTextCnfPassword = (EditText)findViewById(R.id.edittext_cnf_password);
        mButtonRegister = (Button) findViewById(R.id.button_register);
        mTextViewLogin = (TextView) findViewById(R.id.textview_login);
        mTextViewLogin.setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View view) {
                Intent LoginIntent = new Intent(RegisterActivity.this,LoginActivity.class);
                startActivity(LoginIntent);
            }
        });

        mButtonRegister.setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View view) {
                String user = mTextUsername.getText().toString().trim();
                String pwd = mTextPassword.getText().toString().trim();
                String cnf_pwd = mTextCnfPassword.getText().toString().trim();

                if (pwd.equals(cnf_pwd)) {
                    long val = db.addUser(user, pwd);
                    if (val > 0) {
                        Toast.makeText(RegisterActivity.this, "You have registered", Toast.LENGTH_SHORT).show();
                        Intent moveToLogin = new Intent(RegisterActivity.this, LoginActivity.class);
                        startActivity(moveToLogin);
                    } else {
                        Toast.makeText(RegisterActivity.this, "Restration Error", Toast.LENGTH_SHORT).show();
                    }

                } else {
                    Toast.makeText(RegisterActivity.this, "Password is not matching", Toast.LENGTH_SHORT).show();
                }
            }
        });
    }
}

activity_register.xml

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    tools:context="com.ilham.RegisterActivity"
    android:orientation="vertical"
    android:layout_gravity="center_horizontal"
    android:background="#E91E63">

    <EditText
        android:id="@+id/edittext_username"
        android:layout_width="200dp"
        android:layout_height="40dp"
        android:layout_gravity="center"
        android:layout_marginTop="250dp"
        android:background="#ffffffff"
        android:drawableLeft="@drawable/username"
        android:hint="@string/username" />

    <EditText
        android:id="@+id/edittext_password"
        android:layout_width="200dp"
        android:layout_height="40dp"
        android:layout_gravity="center"
        android:layout_marginTop="20dp"
        android:background="#ffffffff"
        android:drawableLeft="@drawable/password"
        android:hint="@string/password" />

    <EditText
        android:id="@+id/edittext_cnf_password"
        android:layout_width="200dp"
        android:layout_height="40dp"
        android:layout_gravity="center"
        android:layout_marginTop="20dp"
        android:background="#ffffffff"
        android:drawableLeft="@drawable/password"
        android:hint="@string/confirm_password" />

    <Button
        android:id="@+id/button_register"
        android:layout_width="200dp"
        android:layout_height="50dp"
        android:layout_gravity="center"
        android:layout_marginTop="40dp"
        android:text="@string/register" />

    <LinearLayout
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:orientation="horizontal"
        android:layout_gravity="center"
        android:layout_marginTop="10dp">

        <TextView
            android:layout_width="wrap_content"
            android:layout_height="35dp"
            android:textColor="#ffffffff"
            android:text="@string/already_registered"/>

        <TextView
            android:id="@+id/textview_login"
            android:layout_width="wrap_content"
            android:layout_height="35dp"
            android:textStyle="bold"
            android:paddingLeft="10dp"
            android:textColor="#ffffffff"
            android:textSize="16sp"
            android:text="@string/login"/>

    </LinearLayout>

</LinearLayout>

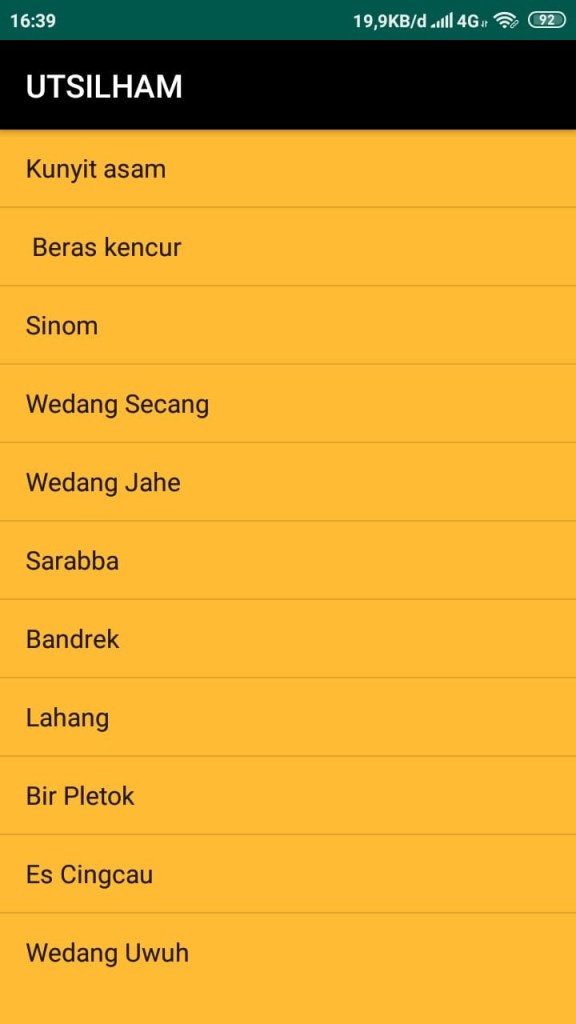

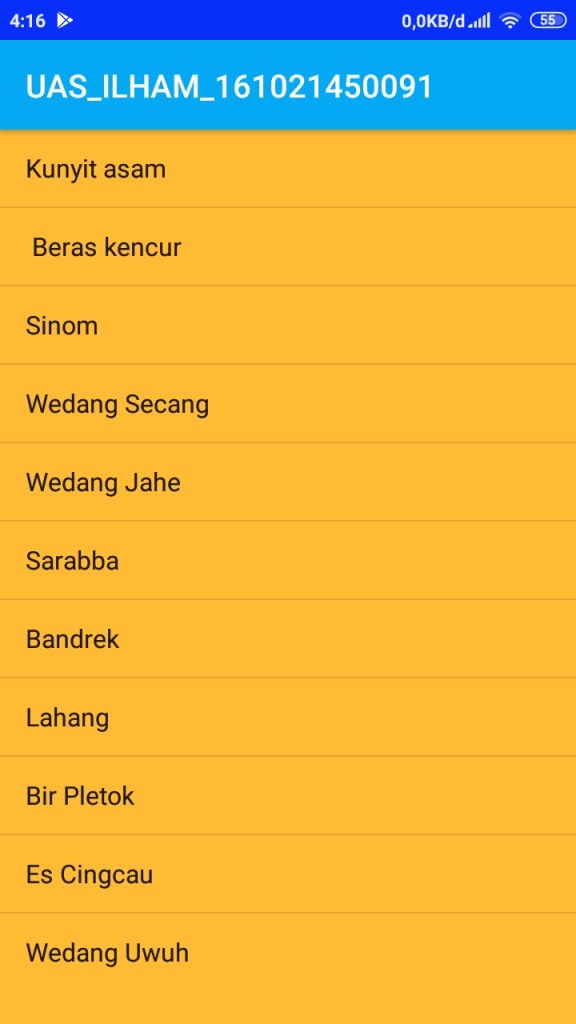

Dan selanjut nya akan membuat listview di berikut nya.

activity1.java

package com.ilham;

import android.content.Intent;
import android.os.Bundle;
import android.view.View;
import android.widget.AdapterView;
import android.widget.ArrayAdapter;
import android.widget.ListView;
import android.widget.Toast;

import androidx.appcompat.app.AppCompatActivity;


public class activity1 extends AppCompatActivity {
    ListView LV;
    String [] minuman={"Kunyit asam"," Beras kencur","Sinom","Wedang Secang","Wedang Jahe","Sarabba",
            "Bandrek","Lahang","Bir Pletok","Es Cingcau","Wedang Uwuh"};

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity12);

        LV = (ListView) findViewById(R.id.listView1);
        ArrayAdapter adapter = new ArrayAdapter(this, android.R.layout.simple_list_item_1, minuman);
        LV.setAdapter(adapter);
        LV.setOnItemClickListener(new AdapterView.OnItemClickListener() {

            @Override
            public void onItemClick(AdapterView<?> arg0, View arg1, int arg2,
                                    long arg3) {
// TODO Auto-generated method stub
                int itemke = arg2;
                String itemText = (String) LV.getItemAtPosition(arg2);
                Toast.makeText(getBaseContext(), "Anda Meng Klik " + itemText, Toast.LENGTH_LONG).show();

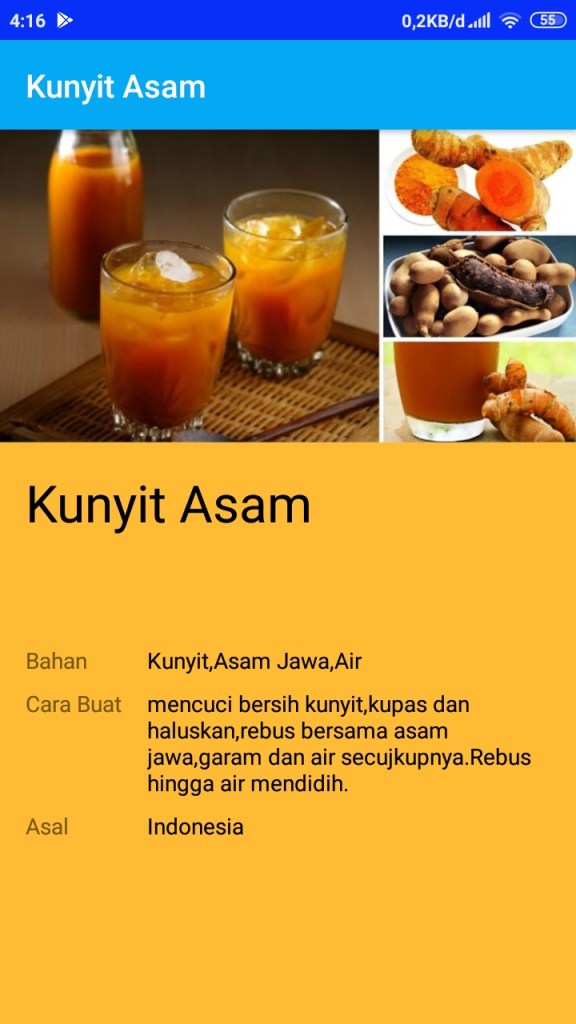

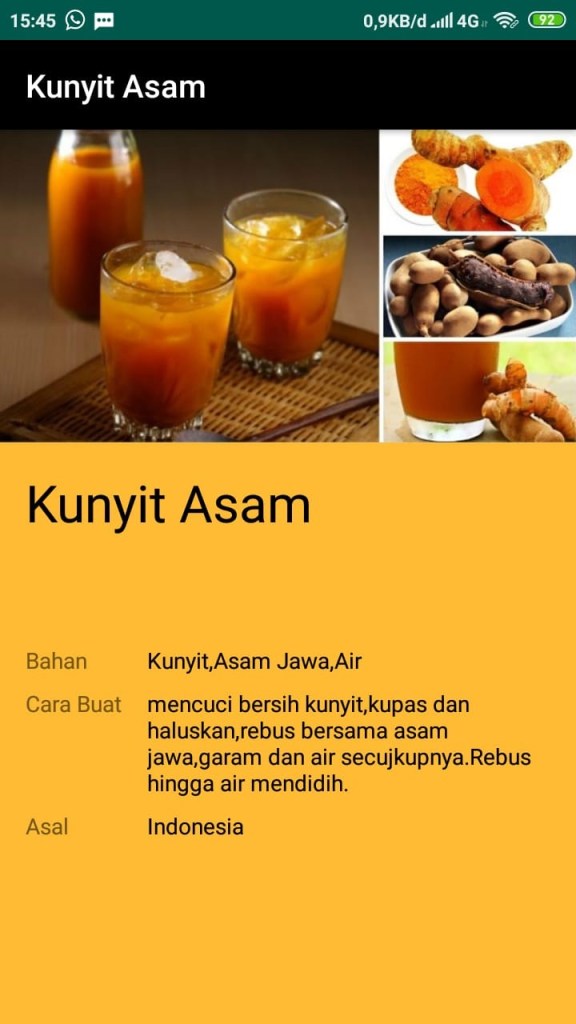

                if (itemText.equals("Kunyit asam")) {
                    Intent SeninIntent = new Intent(arg0.getContext(), kunyitasam.class);
                    startActivityForResult(SeninIntent, 0);

                }
                if (itemText.equals("Beras kencur")) {
                    Intent SeninIntent = new Intent(arg0.getContext(), beraskencur.class);
                    startActivityForResult(SeninIntent, 0);

                }

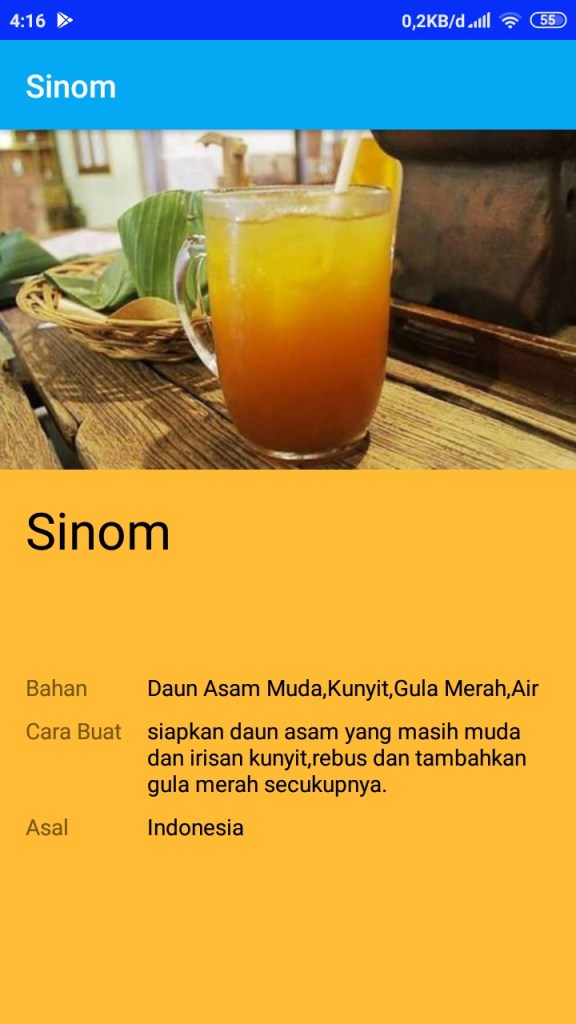

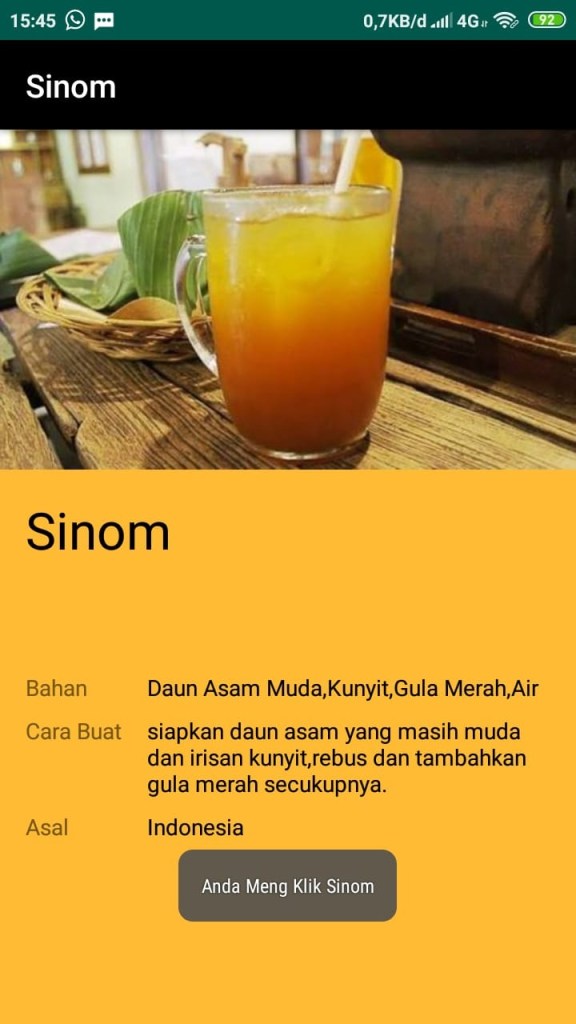

                if (itemText.equals("Sinom")) {
                    Intent SeninIntent = new Intent(arg0.getContext(), sinom.class);
                    startActivityForResult(SeninIntent, 0);

                }

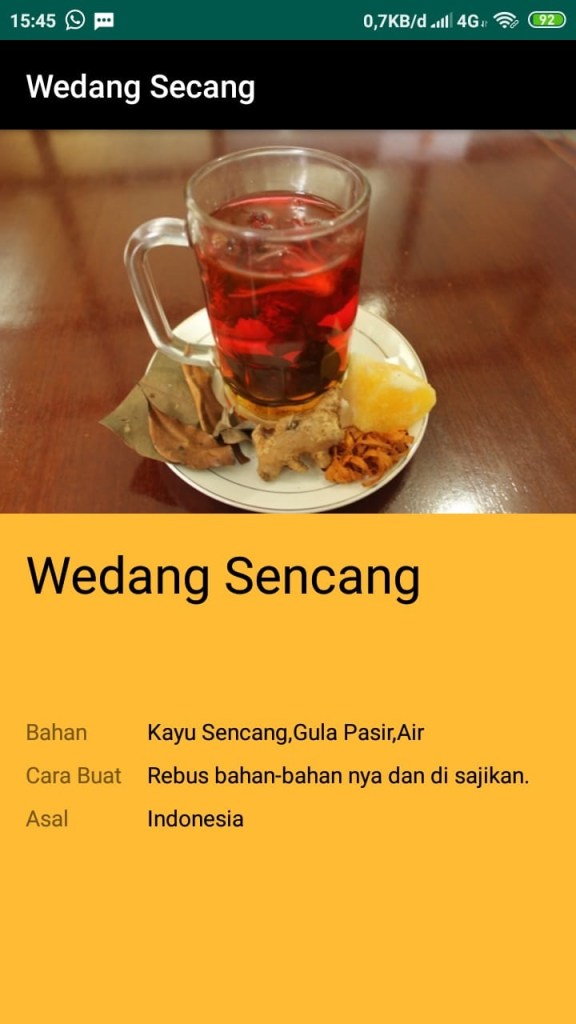

                if (itemText.equals("Wedang Secang")) {
                    Intent SeninIntent = new Intent(arg0.getContext(), wedangsecang.class);
                    startActivityForResult(SeninIntent, 0);

                }

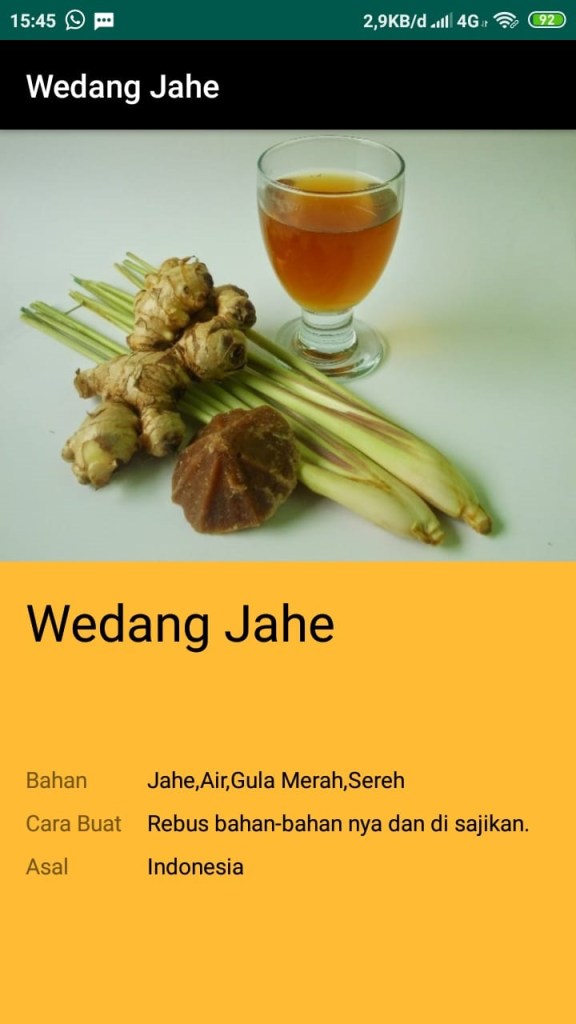

                if (itemText.equals("Wedang Jahe")) {
                    Intent SeninIntent = new Intent(arg0.getContext(), wedangjahe.class);
                    startActivityForResult(SeninIntent, 0);

                }

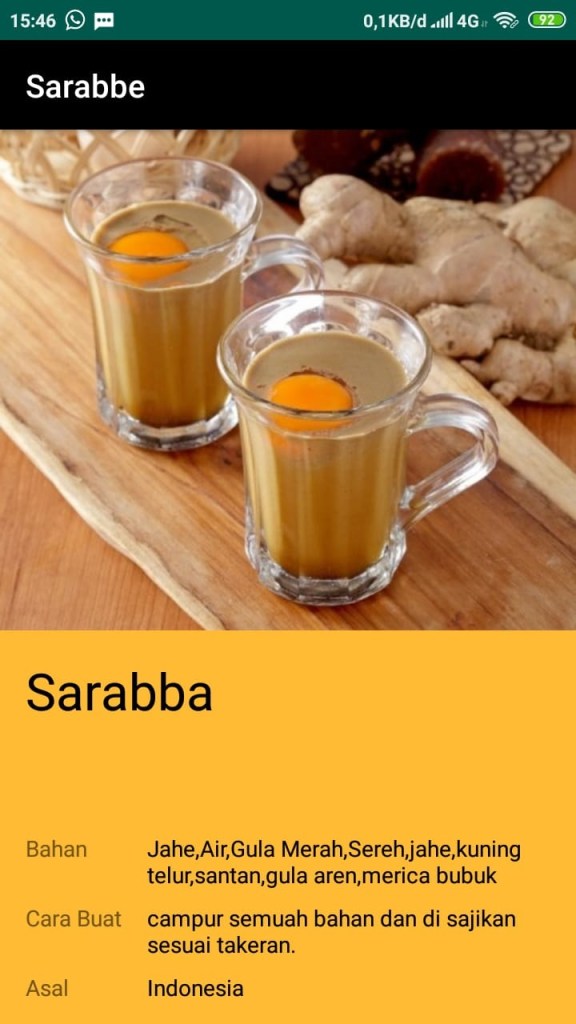

                if (itemText.equals("Sarabba")) {
                    Intent SeninIntent = new Intent(arg0.getContext(), sarabba.class);
                    startActivityForResult(SeninIntent, 0);

                }

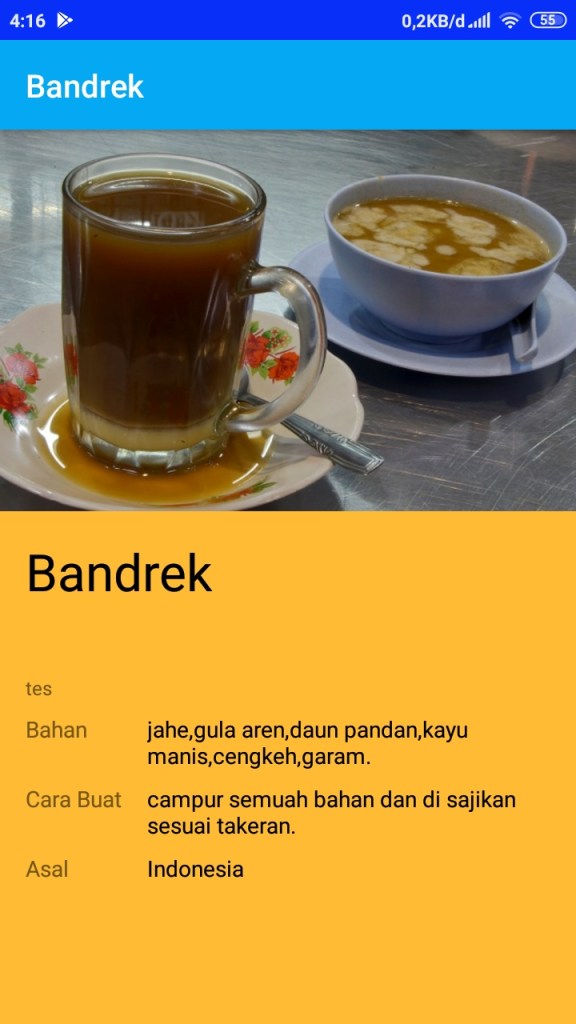

                if (itemText.equals("Bandrek")) {
                    Intent SeninIntent = new Intent(arg0.getContext(), bandrek.class);
                    startActivityForResult(SeninIntent, 0);

                }

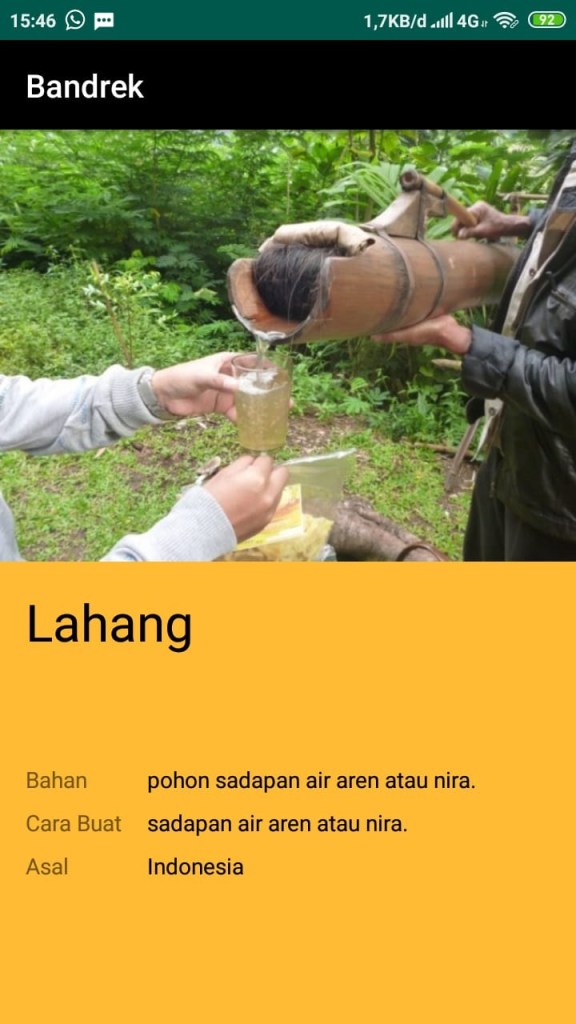

                if (itemText.equals("Lahang")) {
                    Intent SeninIntent = new Intent(arg0.getContext(), lahang.class);
                    startActivityForResult(SeninIntent, 0);

                }
                if (itemText.equals("Bir Pletok")) {
                    Intent SeninIntent = new Intent(arg0.getContext(), birpletok.class);
                    startActivityForResult(SeninIntent, 0);

                }

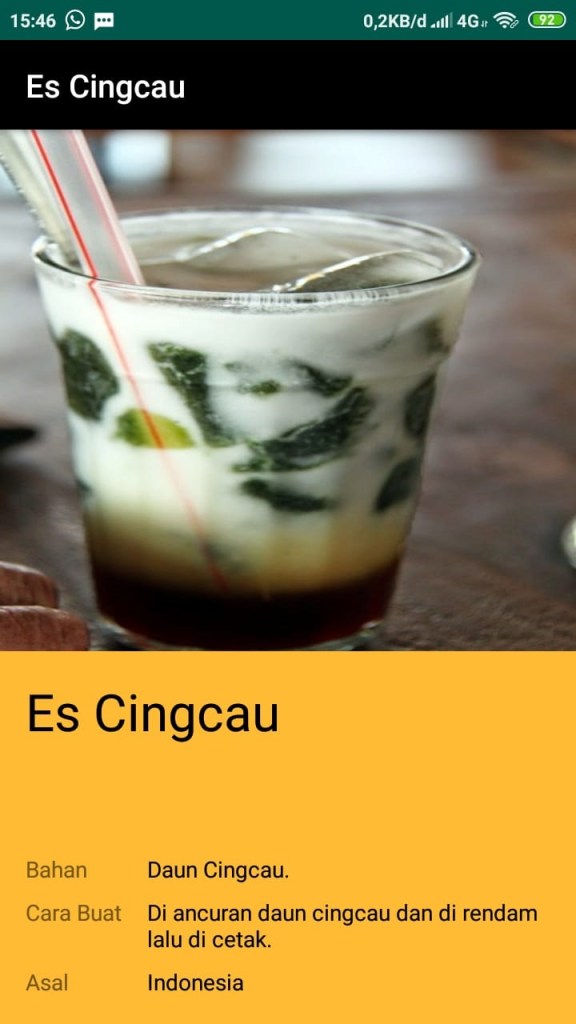

                if (itemText.equals("Es Cingcau")) {
                    Intent SeninIntent = new Intent(arg0.getContext(), escingcau.class);
                    startActivityForResult(SeninIntent, 0);

                }
                if (itemText.equals("Wedang Uwuh")) {
                    Intent SeninIntent = new Intent(arg0.getContext(), wedanguwuh.class);
                    startActivityForResult(SeninIntent, 0);

                }

            }
        });

    }}

activity12.xml

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:orientation="vertical"
    android:background="@android:color/holo_orange_light"
    tools:context=".MainActivity" >

    <ListView
        android:id="@+id/listView1"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:layout_centerHorizontal="true"
        android:layout_centerVertical="true" >
    </ListView>

</LinearLayout>

activity2.java

package com.ilham;

import android.os.Bundle;

import androidx.appcompat.app.AppCompatActivity;

public class activity2 extends AppCompatActivity {

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity22);

    }
}

activity22.xml

<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:background="@android:color/holo_orange_light"
    tools:context=".activity2">

    <TextView
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_alignParentStart="true"
        android:layout_alignParentLeft="true"
        android:layout_alignParentBottom="true"
        android:layout_centerHorizontal="true"
        android:layout_marginStart="91dp"
        android:layout_marginLeft="91dp"
        android:layout_marginBottom="461dp"

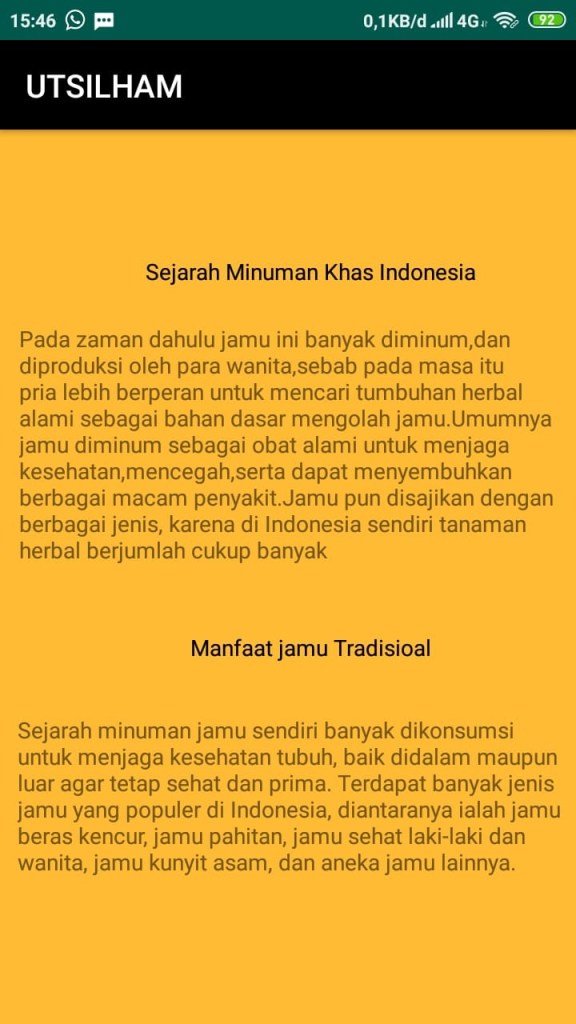

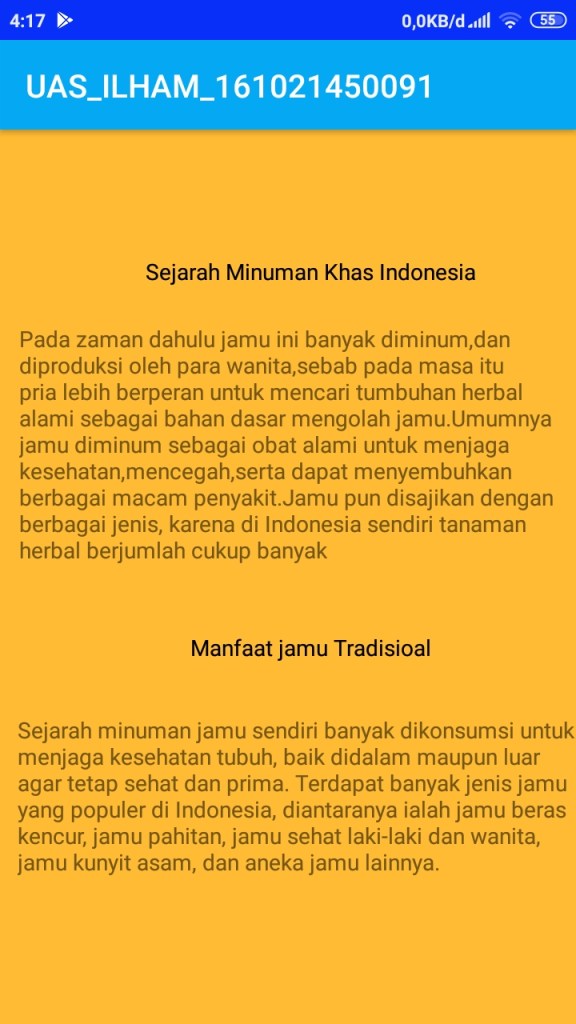

        android:text="Sejarah Minuman Khas Indonesia"
        android:textColor="@android:color/background_dark" />

    <TextView
        android:layout_width="390dp"
        android:layout_height="wrap_content"
        android:layout_alignParentStart="true"
        android:layout_alignParentLeft="true"
        android:layout_alignParentBottom="true"
        android:layout_centerHorizontal="true"
        android:layout_marginStart="12dp"
        android:layout_marginLeft="12dp"
        android:layout_marginBottom="287dp"
        android:text="Pada zaman dahulu jamu ini banyak diminum,dan diproduksi oleh para wanita,sebab pada masa itu pria lebih berperan untuk mencari tumbuhan herbal alami sebagai bahan dasar mengolah jamu.Umumnya jamu diminum sebagai obat alami untuk menjaga kesehatan,mencegah,serta dapat menyembuhkan berbagai macam penyakit.Jamu pun disajikan dengan berbagai jenis, karena di Indonesia sendiri tanaman herbal berjumlah cukup banyak" />

    <TextView
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_alignParentStart="true"
        android:layout_alignParentLeft="true"
        android:layout_alignParentBottom="true"
        android:layout_centerInParent="true"
        android:layout_marginStart="119dp"
        android:layout_marginLeft="119dp"
        android:layout_marginBottom="226dp"
        android:text="Manfaat jamu Tradisioal"
        android:textColor="@android:color/background_dark" />

    <TextView
        android:layout_width="392dp"
        android:layout_height="wrap_content"
        android:layout_alignParentStart="true"
        android:layout_alignParentLeft="true"
        android:layout_alignParentBottom="true"
        android:layout_centerHorizontal="true"
        android:layout_marginStart="11dp"
        android:layout_marginLeft="11dp"
        android:layout_marginBottom="92dp"
        android:text="Sejarah minuman jamu sendiri banyak dikonsumsi untuk menjaga kesehatan tubuh, baik didalam maupun luar agar tetap sehat dan prima. Terdapat banyak jenis jamu yang populer di Indonesia, diantaranya ialah jamu beras kencur, jamu pahitan, jamu sehat laki-laki dan wanita, jamu kunyit asam, dan aneka jamu lainnya." />


</RelativeLayout>

activity3.java

package com.ilham;

import android.os.Bundle;

import androidx.appcompat.app.AppCompatActivity;

public class activity3 extends AppCompatActivity {

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity32);

        }
    }

activity32.xml

<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:background="@android:color/holo_orange_light"
    tools:context=".activity3">

    <TextView
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_alignParentBottom="true"
        android:layout_centerHorizontal="true"
        android:layout_marginBottom="327dp"

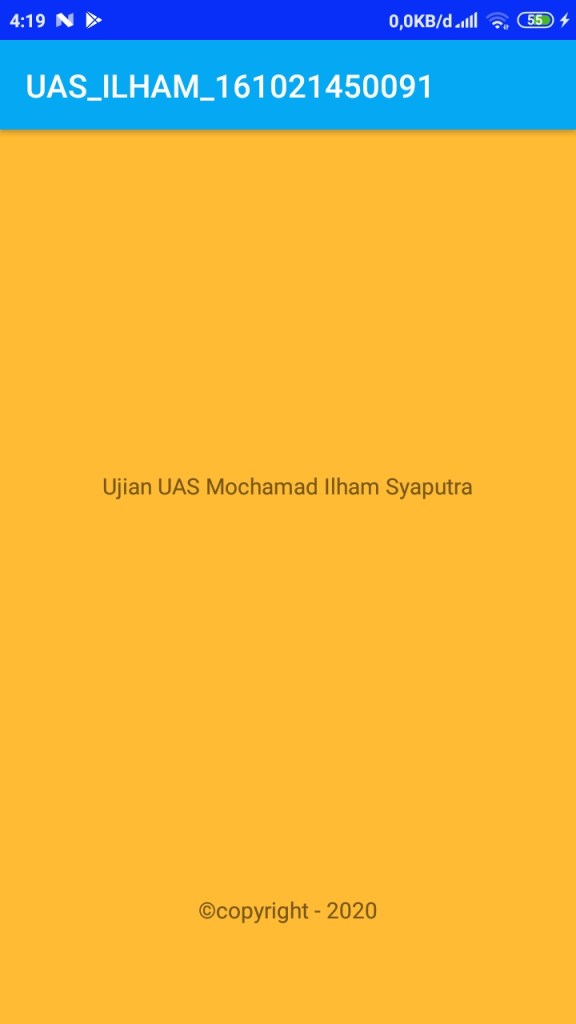

        android:text="Ujian UAS Mochamad Ilham Syaputra"/>

    <TextView
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_alignParentBottom="true"
        android:layout_centerHorizontal="true"
        android:layout_marginBottom="62dp"
        android:text="©copyright - 2020"/>

</RelativeLayout>

kunyitasem.java

package com.ilham;

import android.os.Bundle;

import androidx.appcompat.app.AppCompatActivity;

public class kunyitasam extends AppCompatActivity {

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.kunyitasam1);

        if (getSupportActionBar() != null) {
            getSupportActionBar().setTitle("Kunyit Asam");
        }
    }
}

kunyitasam1.xml

<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    tools:context=".kunyitasam">

    <ScrollView xmlns:android="http://schemas.android.com/apk/res/android"
        android:id="@+id/activity_main"
        android:layout_width="match_parent"
        android:layout_height="match_parent"
        android:background="@android:color/holo_orange_light">

        <LinearLayout
            android:layout_width="match_parent"
            android:layout_height="wrap_content"
            android:orientation="vertical">
            <FrameLayout
                android:layout_width="match_parent"
                android:layout_height="wrap_content">
                <ImageView
                    android:layout_width="match_parent"
                    android:layout_height="wrap_content"
                    android:adjustViewBounds="true"
                    android:scaleType="fitXY"
                    android:src="@drawable/kunyitasam1" />

            </FrameLayout>
            <TextView
                android:layout_width="match_parent"
                android:layout_height="wrap_content"
                android:textSize="32sp"
                android:text="Kunyit Asam"
                android:layout_marginLeft="16dp"
                android:layout_marginRight="16dp"
                android:layout_marginTop="16dp"
                android:layout_marginBottom="8dp"
                android:textColor="@android:color/black"/>
            <TextView
                android:layout_width="match_parent"
                android:layout_height="wrap_content"
                android:text=""
                android:layout_marginLeft="16dp"
                android:layout_marginRight="16dp"
                android:layout_marginBottom="16dp"
                android:lineSpacingMultiplier="1"
                android:textColor="@android:color/black"/>
            <TextView
                android:layout_width="match_parent"
                android:layout_height="wrap_content"
                android:text=""
                android:textSize="12sp"
                android:layout_marginLeft="16dp"
                android:layout_marginRight="16dp"
                android:layout_marginBottom="8dp"/>
            <TableLayout
                android:layout_width="match_parent"
                android:layout_height="wrap_content"
                android:layout_marginLeft="16dp"
                android:layout_marginRight="16dp"
                android:layout_marginBottom="16dp">
                <TableRow
                    android:layout_width="match_parent"
                    android:layout_height="wrap_content"
                    android:layout_marginBottom="8dp">
                    <TextView
                        android:layout_width="wrap_content"
                        android:layout_height="wrap_content"
                        android:textSize="14sp"
                        android:layout_marginRight="16dp"
                        android:text="Bahan"/>
                    <TextView
                        android:layout_width="match_parent"
                        android:layout_height="wrap_content"
                        android:textSize="14sp"
                        android:layout_weight="1"
                        android:text="Kunyit,Asam Jawa,Air"
                        android:textColor="@android:color/black"/>
                </TableRow>
                <TableRow
                    android:layout_width="match_parent"
                    android:layout_height="wrap_content"
                    android:layout_marginBottom="8dp">
                    <TextView
                        android:layout_width="wrap_content"
                        android:layout_height="wrap_content"
                        android:textSize="14sp"
                        android:layout_marginRight="16dp"
                        android:text="Cara Buat"/>
                    <TextView
                        android:layout_width="match_parent"
                        android:layout_height="wrap_content"
                        android:textSize="14sp"
                        android:layout_weight="1"
                        android:text="mencuci bersih kunyit,kupas dan haluskan,rebus bersama asam jawa,garam dan air secujkupnya.Rebus hingga air mendidih."
                        android:textColor="@android:color/black"/>
                </TableRow>
                <TableRow
                    android:layout_width="match_parent"
                    android:layout_height="wrap_content"
                    android:layout_marginBottom="8dp">
                    <TextView
                        android:layout_width="wrap_content"
                        android:layout_height="wrap_content"
                        android:textSize="14sp"
                        android:layout_marginRight="16dp"
                        android:text="Asal"/>
                    <TextView
                        android:layout_width="match_parent"
                        android:layout_height="wrap_content"
                        android:textSize="14sp"
                        android:layout_weight="1"
                        android:text="Indonesia"
                        android:textColor="@android:color/black"/>
                </TableRow>
            </TableLayout>

            <TextView
                android:layout_width="match_parent"
                android:layout_height="wrap_content"
                android:text=""
                android:textSize="12sp"
                android:layout_marginLeft="16dp"
                android:layout_marginRight="16dp"
                android:layout_marginBottom="8dp"/>

        </LinearLayout>
    </ScrollView>

</RelativeLayout>

sinom.java

package com.ilham;

import android.os.Bundle;

import androidx.appcompat.app.AppCompatActivity;

public class sinom extends AppCompatActivity {

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.sinom1);

        if (getSupportActionBar() != null) {
            getSupportActionBar().setTitle("Sinom");
        }
    }
}

sinom1.xml

<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    tools:context=".sinom">

    <ScrollView xmlns:android="http://schemas.android.com/apk/res/android"
        android:id="@+id/activity_main"
        android:layout_width="match_parent"
        android:layout_height="match_parent"
        android:background="@android:color/holo_orange_light">

        <LinearLayout
            android:layout_width="match_parent"
            android:layout_height="wrap_content"
            android:orientation="vertical">
            <FrameLayout
                android:layout_width="match_parent"
                android:layout_height="wrap_content">
                <ImageView
                    android:layout_width="match_parent"
                    android:layout_height="wrap_content"
                    android:adjustViewBounds="true"
                    android:scaleType="fitXY"
                    android:src="@drawable/sinom1" />

            </FrameLayout>
            <TextView
                android:layout_width="match_parent"
                android:layout_height="wrap_content"
                android:textSize="32sp"
                android:text="Sinom"
                android:layout_marginLeft="16dp"
                android:layout_marginRight="16dp"
                android:layout_marginTop="16dp"
                android:layout_marginBottom="8dp"
                android:textColor="@android:color/black"/>
            <TextView
                android:layout_width="match_parent"
                android:layout_height="wrap_content"
                android:text=""
                android:layout_marginLeft="16dp"
                android:layout_marginRight="16dp"
                android:layout_marginBottom="16dp"
                android:lineSpacingMultiplier="1"
                android:textColor="@android:color/black"/>
            <TextView
                android:layout_width="match_parent"
                android:layout_height="wrap_content"
                android:text=""
                android:textSize="12sp"
                android:layout_marginLeft="16dp"
                android:layout_marginRight="16dp"
                android:layout_marginBottom="8dp"/>
            <TableLayout
                android:layout_width="match_parent"
                android:layout_height="wrap_content"
                android:layout_marginLeft="16dp"
                android:layout_marginRight="16dp"
                android:layout_marginBottom="16dp">
                <TableRow
                    android:layout_width="match_parent"
                    android:layout_height="wrap_content"
                    android:layout_marginBottom="8dp">
                    <TextView
                        android:layout_width="wrap_content"
                        android:layout_height="wrap_content"
                        android:textSize="14sp"
                        android:layout_marginRight="16dp"
                        android:text="Bahan"/>
                    <TextView
                        android:layout_width="match_parent"
                        android:layout_height="wrap_content"
                        android:textSize="14sp"
                        android:layout_weight="1"
                        android:text="Daun Asam Muda,Kunyit,Gula Merah,Air"
                        android:textColor="@android:color/black"/>
                </TableRow>
                <TableRow
                    android:layout_width="match_parent"
                    android:layout_height="wrap_content"
                    android:layout_marginBottom="8dp">
                    <TextView
                        android:layout_width="wrap_content"
                        android:layout_height="wrap_content"
                        android:textSize="14sp"
                        android:layout_marginRight="16dp"
                        android:text="Cara Buat"/>
                    <TextView
                        android:layout_width="match_parent"
                        android:layout_height="wrap_content"
                        android:textSize="14sp"
                        android:layout_weight="1"
                        android:text="siapkan daun asam yang masih muda dan irisan kunyit,rebus dan tambahkan gula merah secukupnya."
                        android:textColor="@android:color/black"/>
                </TableRow>
                <TableRow
                    android:layout_width="match_parent"
                    android:layout_height="wrap_content"
                    android:layout_marginBottom="8dp">
                    <TextView
                        android:layout_width="wrap_content"
                        android:layout_height="wrap_content"
                        android:textSize="14sp"
                        android:layout_marginRight="16dp"
                        android:text="Asal"/>
                    <TextView
                        android:layout_width="match_parent"
                        android:layout_height="wrap_content"
                        android:textSize="14sp"
                        android:layout_weight="1"
                        android:text="Indonesia"
                        android:textColor="@android:color/black"/>
                </TableRow>
            </TableLayout>

            <TextView
                android:layout_width="match_parent"
                android:layout_height="wrap_content"
                android:text=""
                android:textSize="12sp"
                android:layout_marginLeft="16dp"
                android:layout_marginRight="16dp"
                android:layout_marginBottom="8dp"/>

        </LinearLayout>
    </ScrollView>

</RelativeLayout>

bandrek.java

bandrek1.xml

<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    tools:context=".bandrek">

    <ScrollView xmlns:android="http://schemas.android.com/apk/res/android"
        android:id="@+id/activity_main"
        android:layout_width="match_parent"
        android:layout_height="match_parent"
        android:background="@android:color/holo_orange_light">

        <LinearLayout
            android:layout_width="match_parent"
            android:layout_height="wrap_content"
            android:orientation="vertical">
            <FrameLayout
                android:layout_width="match_parent"
                android:layout_height="wrap_content">
                <ImageView
                    android:layout_width="match_parent"
                    android:layout_height="wrap_content"
                    android:adjustViewBounds="true"
                    android:scaleType="fitXY"
                    android:src="@drawable/bandrek1" />

            </FrameLayout>
            <TextView
                android:layout_width="match_parent"
                android:layout_height="wrap_content"
                android:textSize="32sp"
                android:text="Bandrek"
                android:layout_marginLeft="16dp"
                android:layout_marginRight="16dp"
                android:layout_marginTop="16dp"
                android:layout_marginBottom="8dp"
                android:textColor="@android:color/black"/>
            <TextView
                android:layout_width="match_parent"
                android:layout_height="wrap_content"
                android:text=""
                android:layout_marginLeft="16dp"
                android:layout_marginRight="16dp"
                android:layout_marginBottom="16dp"
                android:lineSpacingMultiplier="1"
                android:textColor="@android:color/black"/>
            <TextView
                android:layout_width="match_parent"
                android:layout_height="wrap_content"
                android:text="tes"
                android:textSize="12sp"
                android:layout_marginLeft="16dp"
                android:layout_marginRight="16dp"
                android:layout_marginBottom="8dp"/>
            <TableLayout
                android:layout_width="match_parent"
                android:layout_height="wrap_content"
                android:layout_marginLeft="16dp"
                android:layout_marginRight="16dp"
                android:layout_marginBottom="16dp">
                <TableRow
                    android:layout_width="match_parent"
                    android:layout_height="wrap_content"
                    android:layout_marginBottom="8dp">
                    <TextView
                        android:layout_width="wrap_content"
                        android:layout_height="wrap_content"
                        android:textSize="14sp"
                        android:layout_marginRight="16dp"
                        android:text="Bahan"/>
                    <TextView
                        android:layout_width="match_parent"
                        android:layout_height="wrap_content"
                        android:textSize="14sp"
                        android:layout_weight="1"
                        android:text="jahe,gula aren,daun pandan,kayu manis,cengkeh,garam."
                        android:textColor="@android:color/black"/>
                </TableRow>
                <TableRow
                    android:layout_width="match_parent"
                    android:layout_height="wrap_content"
                    android:layout_marginBottom="8dp">
                    <TextView
                        android:layout_width="wrap_content"
                        android:layout_height="wrap_content"
                        android:textSize="14sp"
                        android:layout_marginRight="16dp"
                        android:text="Cara Buat"/>
                    <TextView
                        android:layout_width="match_parent"
                        android:layout_height="wrap_content"
                        android:textSize="14sp"
                        android:layout_weight="1"
                        android:text="campur semuah bahan dan di sajikan sesuai takeran."
                        android:textColor="@android:color/black"/>
                </TableRow>
                <TableRow
                    android:layout_width="match_parent"
                    android:layout_height="wrap_content"
                    android:layout_marginBottom="8dp">
                    <TextView
                        android:layout_width="wrap_content"
                        android:layout_height="wrap_content"
                        android:textSize="14sp"
                        android:layout_marginRight="16dp"
                        android:text="Asal"/>
                    <TextView
                        android:layout_width="match_parent"
                        android:layout_height="wrap_content"
                        android:textSize="14sp"
                        android:layout_weight="1"
                        android:text="Indonesia"
                        android:textColor="@android:color/black"/>
                </TableRow>
            </TableLayout>

            <TextView
                android:layout_width="match_parent"
                android:layout_height="wrap_content"
                android:text=""
                android:textSize="12sp"
                android:layout_marginLeft="16dp"
                android:layout_marginRight="16dp"
                android:layout_marginBottom="8dp"/>

        </LinearLayout>
    </ScrollView>

</RelativeLayout>

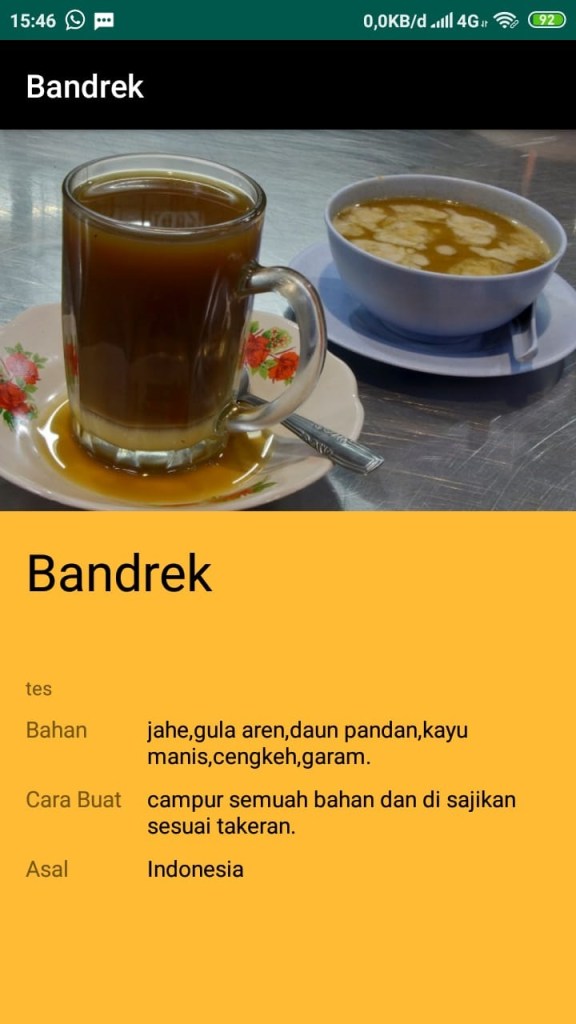

Ini hasil akihirnya seperti di gambar di atas. Kurang lebih saya mohon maaf dan terimakasih semoga bermanfaat dan membantu dalam tugas uas saya. Terima Kasih.

Mochamad Ilham Syaputra

161021450091

06TPLM001

Moblie Programing

Membuat Aplikasi Mengenal Minuman Tradisional Indonesia

Membuat aplikasi di Moblie untuk Sayarat untuk memenuhi ujian tengah semester mata kuliah Moblie Programing,Berikut ini langkah untuk membuat aplikasi menu minuman tradisional.

Pertama tama yang di buat depan halaman depan saat kita buka, Mengunakan boutton dan textview.

mainactivity.java

package android.utsilham;

import androidx.appcompat.app.AppCompatActivity;

import android.content.Intent;
import android.os.Bundle;
import android.view.View;
import android.widget.Button;

public class MainActivity extends AppCompatActivity {
    private Button button;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);

        button = (Button) findViewById(R.id.bt1);
        button.setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View v) {
                openActivity1();
            }
        });

        button = (Button) findViewById(R.id.bt2);
        button.setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View v) {
                openActivity2();
            }
        });

        button = (Button) findViewById(R.id.bt3);
        button.setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View v) {
                openActivity3();
            }
        });
    }

    public void openActivity1() {
        Intent intent = new Intent(this, activity1.class);
        startActivity(intent);
    }
    public void openActivity2() {
        Intent intent = new Intent(this, activity2.class);
        startActivity(intent);
    }
    public void openActivity3() {
        Intent intent = new Intent(this, activity3.class);
        startActivity(intent);
    }

    }

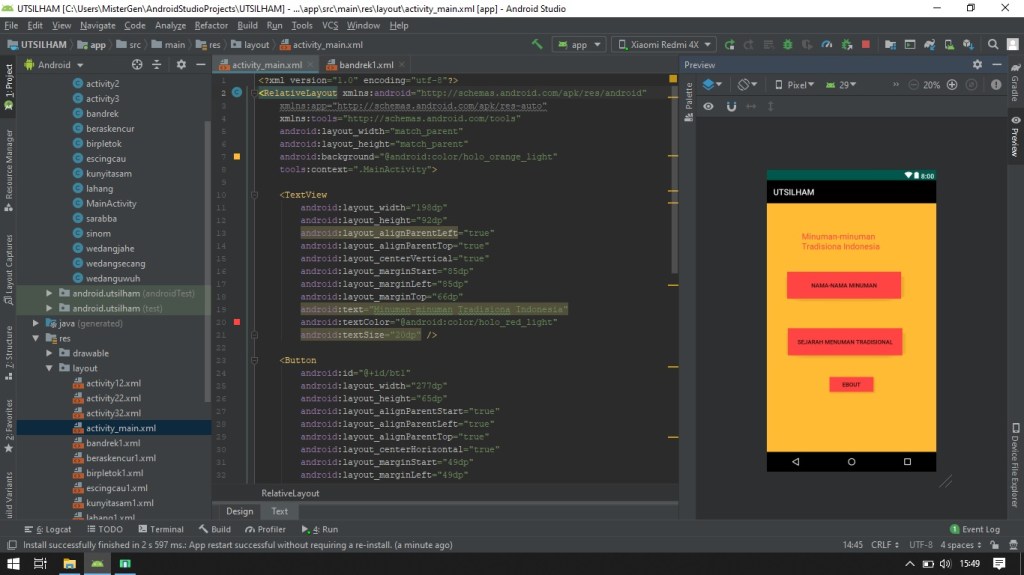

activity_main.xml

<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:background="@android:color/holo_orange_light"
    tools:context=".MainActivity">

    <TextView
        android:layout_width="198dp"
        android:layout_height="92dp"
        android:layout_alignParentLeft="true"
        android:layout_alignParentTop="true"
        android:layout_centerVertical="true"
        android:layout_marginStart="85dp"
        android:layout_marginLeft="85dp"
        android:layout_marginTop="66dp"
        android:text="Minuman-minuman Tradisiona Indonesia"
        android:textColor="@android:color/holo_red_light"
        android:textSize="20dp" />

    <Button
        android:id="@+id/bt1"
        android:layout_width="277dp"
        android:layout_height="65dp"
        android:layout_alignParentStart="true"
        android:layout_alignParentLeft="true"
        android:layout_alignParentTop="true"
        android:layout_centerHorizontal="true"
        android:layout_marginStart="49dp"
        android:layout_marginLeft="49dp"
        android:layout_marginTop="166dp"
        android:background="@android:color/holo_red_light"
        android:text="NAMA-NAMA MINUMAN" />

    <Button
        android:id="@+id/bt2"
        android:layout_width="278dp"
        android:layout_height="66dp"
        android:layout_alignParentStart="true"
        android:layout_alignParentLeft="true"
        android:layout_alignParentTop="true"
        android:layout_centerHorizontal="true"
        android:layout_marginStart="51dp"
        android:layout_marginLeft="51dp"
        android:layout_marginTop="303dp"
        android:background="@android:color/holo_red_light"
        android:text="SEJARAH MENUMAN TRADISIONAL" />

    <Button
        android:id="@+id/bt3"
        android:layout_width="107dp"
        android:layout_height="36dp"
        android:layout_alignParentTop="true"
        android:layout_centerHorizontal="true"
        android:layout_marginStart="35dp"
        android:layout_marginLeft="134dp"
        android:layout_marginTop="421dp"
        android:background="@android:color/holo_red_light"
        android:text="ebout" />

</RelativeLayout>

Ini menampilkan button dan backgroud,harus di tambahkan new dreawle source file.

activity1.java

package android.utsilham;

import androidx.appcompat.app.AppCompatActivity;

import android.os.Bundle;
import android.app.Activity;
import android.view.*;
import android.widget.AdapterView;
import android.widget.ArrayAdapter;
import android.widget.ListView;
import android.widget.Toast;
import android.content.Intent;


public class activity1 extends AppCompatActivity {
    ListView LV;
    String [] minuman={"Kunyit asam"," Beras kencur","Sinom","Wedang Secang","Wedang Jahe","Sarabba",
            "Bandrek","Lahang","Bir Pletok","Es Cingcau","Wedang Uwuh"};

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity12);

        LV = (ListView) findViewById(R.id.listView1);
        ArrayAdapter adapter = new ArrayAdapter(this, android.R.layout.simple_list_item_1, minuman);
        LV.setAdapter(adapter);
        LV.setOnItemClickListener(new AdapterView.OnItemClickListener() {

            @Override
            public void onItemClick(AdapterView<?> arg0, View arg1, int arg2,
                                    long arg3) {
// TODO Auto-generated method stub
                int itemke = arg2;
                String itemText = (String) LV.getItemAtPosition(arg2);
                Toast.makeText(getBaseContext(), "Anda Meng Klik " + itemText, Toast.LENGTH_LONG).show();
                if (itemText.equals("Kunyit asam")) {
                    Intent SeninIntent = new Intent(arg0.getContext(), kunyitasam.class);
                    startActivityForResult(SeninIntent, 0);

                }
                if (itemText.equals("Beras kencur")) {
                    Intent SeninIntent = new Intent(arg0.getContext(), beraskencur.class);
                    startActivityForResult(SeninIntent, 0);

                }
                if (itemText.equals("Sinom")) {
                    Intent SeninIntent = new Intent(arg0.getContext(), sinom.class);
                    startActivityForResult(SeninIntent, 0);

                }
                if (itemText.equals("Wedang Secang")) {
                    Intent SeninIntent = new Intent(arg0.getContext(), wedangsecang.class);
                    startActivityForResult(SeninIntent, 0);

                }
                if (itemText.equals("Wedang Jahe")) {
                    Intent SeninIntent = new Intent(arg0.getContext(), wedangjahe.class);
                    startActivityForResult(SeninIntent, 0);

                }
                if (itemText.equals("Sarabba")) {
                    Intent SeninIntent = new Intent(arg0.getContext(), sarabba.class);
                    startActivityForResult(SeninIntent, 0);

                }
                if (itemText.equals("Bandrek")) {
                    Intent SeninIntent = new Intent(arg0.getContext(), bandrek.class);
                    startActivityForResult(SeninIntent, 0);

                }
                if (itemText.equals("Lahang")) {
                    Intent SeninIntent = new Intent(arg0.getContext(), lahang.class);
                    startActivityForResult(SeninIntent, 0);

                }
                if (itemText.equals("Bir Pletok")) {
                    Intent SeninIntent = new Intent(arg0.getContext(), birpletok.class);
                    startActivityForResult(SeninIntent, 0);

                }
                if (itemText.equals("Es Cingcau")) {
                    Intent SeninIntent = new Intent(arg0.getContext(), escingcau.class);
                    startActivityForResult(SeninIntent, 0);

                }
                if (itemText.equals("Wedang Uwuh")) {
                    Intent SeninIntent = new Intent(arg0.getContext(), wedanguwuh.class);
                    startActivityForResult(SeninIntent, 0);

                }

            }
        });

    }}

activity12.xml

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:orientation="vertical"
    android:background="@android:color/holo_orange_light"
    tools:context=".MainActivity" >

    <ListView
        android:id="@+id/listView1"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:layout_centerHorizontal="true"
        android:layout_centerVertical="true" >
    </ListView>

</LinearLayout>

Selanjutnya perlu tambahkan activity baru kunyit asem komponen image,textview.

package android.utsilham;

import androidx.appcompat.app.AppCompatActivity;

import android.os.Bundle;

public class kunyitasam extends AppCompatActivity {

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.kunyitasam1);

        if (getSupportActionBar() != null) {
            getSupportActionBar().setTitle("Kunyit Asam");
        }
    }
}

<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    tools:context=".kunyitasam">

    <ScrollView xmlns:android="http://schemas.android.com/apk/res/android"
        android:id="@+id/activity_main"
        android:layout_width="match_parent"
        android:layout_height="match_parent"
        android:background="@android:color/holo_orange_light">

        <LinearLayout
            android:layout_width="match_parent"
            android:layout_height="wrap_content"
            android:orientation="vertical">
            <FrameLayout
                android:layout_width="match_parent"
                android:layout_height="wrap_content">
                <ImageView
                    android:layout_width="match_parent"
                    android:layout_height="wrap_content"
                    android:adjustViewBounds="true"
                    android:scaleType="fitXY"
                    android:src="@drawable/kunyitasam1" />

            </FrameLayout>
            <TextView
                android:layout_width="match_parent"
                android:layout_height="wrap_content"
                android:textSize="32sp"
                android:text="Kunyit Asam"
                android:layout_marginLeft="16dp"
                android:layout_marginRight="16dp"
                android:layout_marginTop="16dp"
                android:layout_marginBottom="8dp"
                android:textColor="@android:color/black"/>
            <TextView
                android:layout_width="match_parent"
                android:layout_height="wrap_content"
                android:text=""
                android:layout_marginLeft="16dp"
                android:layout_marginRight="16dp"
                android:layout_marginBottom="16dp"
                android:lineSpacingMultiplier="1"
                android:textColor="@android:color/black"/>
            <TextView
                android:layout_width="match_parent"
                android:layout_height="wrap_content"
                android:text=""
                android:textSize="12sp"
                android:layout_marginLeft="16dp"
                android:layout_marginRight="16dp"
                android:layout_marginBottom="8dp"/>
            <TableLayout
                android:layout_width="match_parent"
                android:layout_height="wrap_content"
                android:layout_marginLeft="16dp"
                android:layout_marginRight="16dp"
                android:layout_marginBottom="16dp">
                <TableRow
                    android:layout_width="match_parent"
                    android:layout_height="wrap_content"
                    android:layout_marginBottom="8dp">
                    <TextView
                        android:layout_width="wrap_content"
                        android:layout_height="wrap_content"
                        android:textSize="14sp"
                        android:layout_marginRight="16dp"
                        android:text="Bahan"/>
                    <TextView
                        android:layout_width="match_parent"
                        android:layout_height="wrap_content"
                        android:textSize="14sp"
                        android:layout_weight="1"
                        android:text="Kunyit,Asam Jawa,Air"
                        android:textColor="@android:color/black"/>
                </TableRow>
                <TableRow
                    android:layout_width="match_parent"
                    android:layout_height="wrap_content"
                    android:layout_marginBottom="8dp">
                    <TextView
                        android:layout_width="wrap_content"
                        android:layout_height="wrap_content"
                        android:textSize="14sp"
                        android:layout_marginRight="16dp"
                        android:text="Cara Buat"/>
                    <TextView
                        android:layout_width="match_parent"
                        android:layout_height="wrap_content"
                        android:textSize="14sp"
                        android:layout_weight="1"
                        android:text="mencuci bersih kunyit,kupas dan haluskan,rebus bersama asam jawa,garam dan air secujkupnya.Rebus hingga air mendidih."
                        android:textColor="@android:color/black"/>
                </TableRow>
                <TableRow
                    android:layout_width="match_parent"
                    android:layout_height="wrap_content"
                    android:layout_marginBottom="8dp">
                    <TextView
                        android:layout_width="wrap_content"
                        android:layout_height="wrap_content"
                        android:textSize="14sp"
                        android:layout_marginRight="16dp"
                        android:text="Asal"/>
                    <TextView
                        android:layout_width="match_parent"
                        android:layout_height="wrap_content"
                        android:textSize="14sp"
                        android:layout_weight="1"
                        android:text="Indonesia"
                        android:textColor="@android:color/black"/>
                </TableRow>
            </TableLayout>

            <TextView
                android:layout_width="match_parent"
                android:layout_height="wrap_content"
                android:text=""
                android:textSize="12sp"
                android:layout_marginLeft="16dp"
                android:layout_marginRight="16dp"
                android:layout_marginBottom="8dp"/>

        </LinearLayout>
    </ScrollView>

</RelativeLayout>

Jangan lupa perlu menambahan gambar terlebih dahulu dalam folder draweble.

Lakukan hal yang sama untuk mengisi dari Activity atau minuman-minuman yang lain pada list view berikut hasil beberpa yang sudah di tambahpada list minuman tradisional.

Selanjutnya membuat list view berikut.

activity1.java

package android.utsilham;

import android.os.Bundle;

import androidx.appcompat.app.AppCompatActivity;

public class activity2 extends AppCompatActivity {

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity22);

    }
}

activity22.xml

<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:background="@android:color/holo_orange_light"
    tools:context=".activity2">

    <TextView
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_alignParentStart="true"
        android:layout_alignParentLeft="true"
        android:layout_alignParentBottom="true"
        android:layout_centerHorizontal="true"
        android:layout_marginStart="91dp"
        android:layout_marginLeft="91dp"
        android:layout_marginBottom="461dp"
        android:text="Sejarah Minuman Khas Indonesia"
        android:textColor="@android:color/background_dark" />

    <TextView
        android:layout_width="390dp"
        android:layout_height="wrap_content"
        android:layout_alignParentStart="true"
        android:layout_alignParentLeft="true"
        android:layout_alignParentBottom="true"
        android:layout_centerHorizontal="true"
        android:layout_marginStart="12dp"
        android:layout_marginLeft="12dp"
        android:layout_marginBottom="287dp"
        android:text="Pada zaman dahulu jamu ini banyak diminum,dan diproduksi oleh para wanita,sebab pada masa itu pria lebih berperan untuk mencari tumbuhan herbal alami sebagai bahan dasar mengolah jamu.Umumnya jamu diminum sebagai obat alami untuk menjaga kesehatan,mencegah,serta dapat menyembuhkan berbagai macam penyakit.Jamu pun disajikan dengan berbagai jenis, karena di Indonesia sendiri tanaman herbal berjumlah cukup banyak" />

    <TextView
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_alignParentStart="true"
        android:layout_alignParentLeft="true"
        android:layout_alignParentBottom="true"
        android:layout_centerInParent="true"
        android:layout_marginStart="119dp"
        android:layout_marginLeft="119dp"
        android:layout_marginBottom="226dp"
        android:text="Manfaat jamu Tradisioal"
        android:textColor="@android:color/background_dark" />

    <TextView
        android:layout_width="392dp"
        android:layout_height="wrap_content"
        android:layout_alignParentStart="true"
        android:layout_alignParentLeft="true"
        android:layout_alignParentBottom="true"
        android:layout_centerHorizontal="true"
        android:layout_marginStart="11dp"
        android:layout_marginLeft="11dp"
        android:layout_marginBottom="92dp"
        android:text="Sejarah minuman jamu sendiri banyak dikonsumsi untuk menjaga kesehatan tubuh, baik didalam maupun luar agar tetap sehat dan prima. Terdapat banyak jenis jamu yang populer di Indonesia, diantaranya ialah jamu beras kencur, jamu pahitan, jamu sehat laki-laki dan wanita, jamu kunyit asam, dan aneka jamu lainnya." />


</RelativeLayout>

Selanjut nya membuat list view yang nama nya di ebout,Berikut srip nya.

activity3.java

package android.utsilham;

import android.os.Bundle;

import androidx.appcompat.app.AppCompatActivity;

public class activity3 extends AppCompatActivity {

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity32);

        }
    }

activity32.xml

<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:background="@android:color/holo_orange_light"
    tools:context=".activity3">

    <TextView
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_alignParentBottom="true"
        android:layout_centerHorizontal="true"
        android:layout_marginBottom="327dp"
        android:text="Ujian UTS Mochamad Ilham Syaputra"/>

    <TextView
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_alignParentBottom="true"
        android:layout_centerHorizontal="true"
        android:layout_marginBottom="62dp"
        android:text="©copyright - 2019"/>

</RelativeLayout>

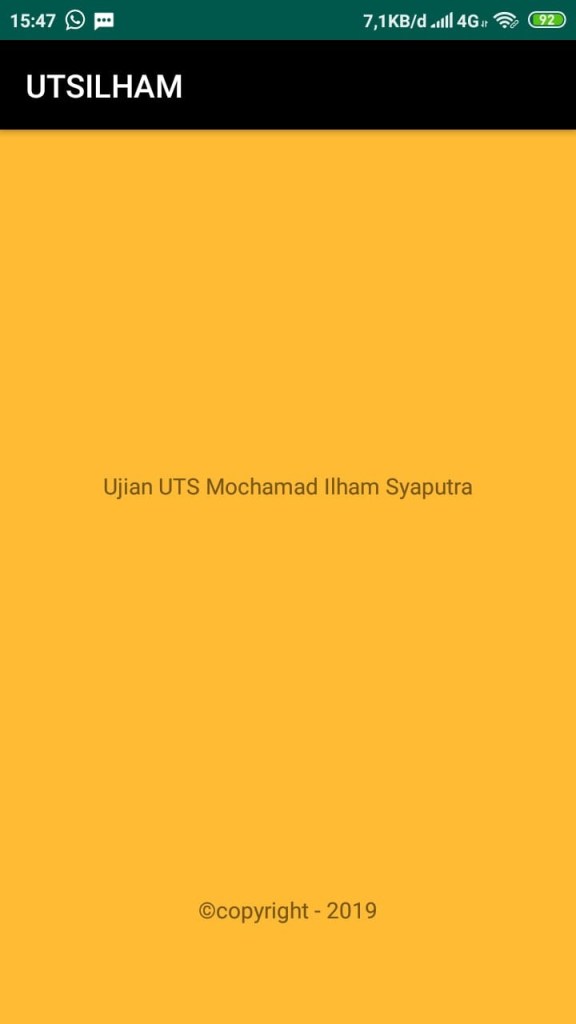

Ini hasil akihirnya seperti di gambar di atas. Kurang lebih saya mohon maaf dan terimakasih semoga bermanfaat dan membantu dalam tugas uts saya. Terima Kasih.

Mochamad Ilham Syaputra

161021450091

06TPLM001

Moblie Programing

Introduce Yourself (Example Post)

This is an example post, originally published as part of Blogging University. Enroll in one of our ten programs, and start your blog right.

You’re going to publish a post today. Don’t worry about how your blog looks. Don’t worry if you haven’t given it a name yet, or you’re feeling overwhelmed. Just click the “New Post” button, and tell us why you’re here.

Why do this?

Because it gives new readers context. What are you about? Why should they read your blog?
Because it will help you focus you own ideas about your blog and what you’d like to do with it.

The post can be short or long, a personal intro to your life or a bloggy mission statement, a manifesto for the future or a simple outline of your the types of things you hope to publish.

To help you get started, here are a few questions:

Why are you blogging publicly, rather than keeping a personal journal?
What topics do you think you’ll write about?
Who would you love to connect with via your blog?
If you blog successfully throughout the next year, what would you hope to have accomplished?

You’re not locked into any of this; one of the wonderful things about blogs is how they constantly evolve as we learn, grow, and interact with one another — but it’s good to know where and why you started, and articulating your goals may just give you a few other post ideas.

Can’t think how to get started? Just write the first thing that pops into your head. Anne Lamott, author of a book on writing we love, says that you need to give yourself permission to write a “crappy first draft”. Anne makes a great point — just start writing, and worry about editing it later.

When you’re ready to publish, give your post three to five tags that describe your blog’s focus — writing, photography, fiction, parenting, food, cars, movies, sports, whatever. These tags will help others who care about your topics find you in the Reader. Make sure one of the tags is “zerotohero,” so other new bloggers can find you, too.
